Features：

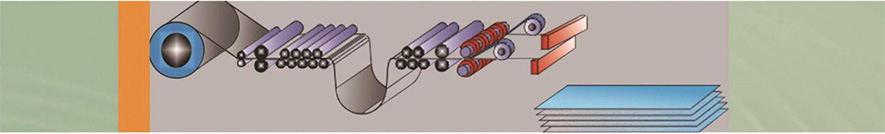

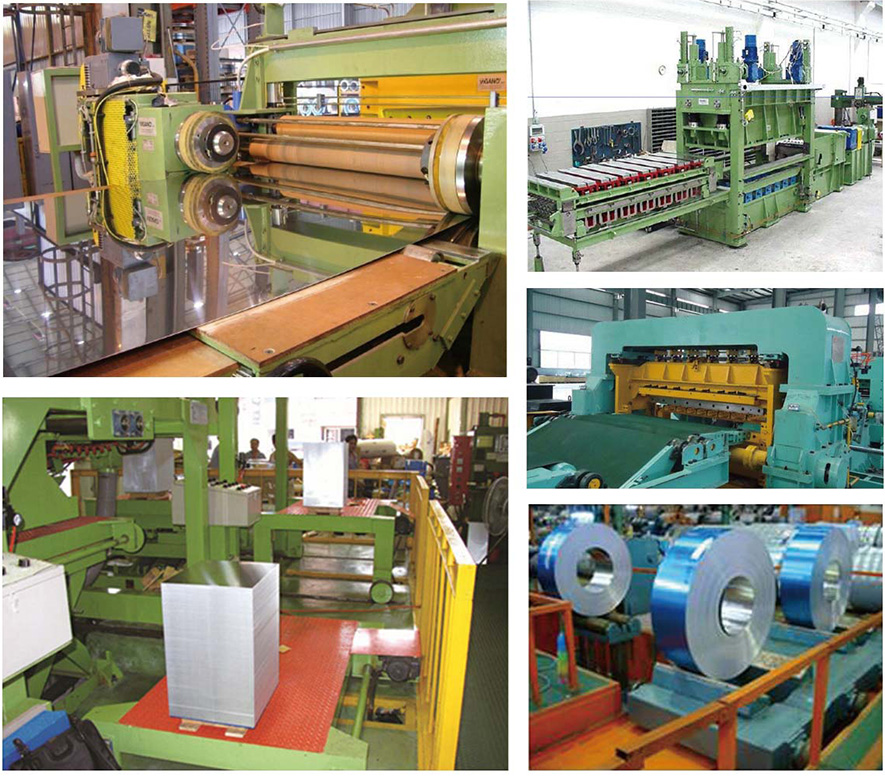

◆The fly shearing line is a special equipment to flatten and cut the thin metal coil into block plates The fly shearing line is usually composed of loading cart， un coiler， shovel plate， leveling machine movable bridge， guiding&direction correcting device， length-fixing mechanism， film covering device，flying shear machine， conveying table， pneumatic discharging rack， hydraulic if ting and stacking platform， conveying roller table， hydraulic system， electrical control system and soon.The whole line is controlled by PLC.The main hydraulic， pneumatic， electronic components， measuring system components are in tema tionally renowned brands.
◆This fly shearing line is mainly used for processing CRc oil， stainless steel coil and non-ferrous metal coll， etc.， equipped with six-high leveling machine， it can carryout leveling， length-fixing and transverse shearing for coil with high requirements， such as aluminum and soon
◆According to customer requirements， flying she arne can be equipped with two leveling machines：primary leveling machine and high precision leveling machine.The length-fixing and shearing feed function can adopt one of the following three modes：common mechanical and electrical cooperative action， digital frequency conversion technology orAC servo technology.There are two kinds of fly shearing machines available：single rotary and double rotary fly shearing machine.When the fly shearing line is matched with relevant forming machines， the production line can do a wider range of functional extension.
|
Model
|
650 Type
|
800 Type
|
800 Type
|
1250 Type
|
1600 Type
|
1800 Type
|
2000 Type
|
2200 Type
|
|
Original coil material
|
Cold rolled sheet, galvanized sheet, color coated sheet, stainless steel sheet, etc
|
|||||||
|
Thickness
|
0.2mm-2.3mm
|
0.2mm-2.3mm
|
0.5mm-3mm
|
0.3mm-2.3mm
|
0.5mm-3mm
|
0.5mm-3mm
|
0.5mm-3mm
|
0.5mm-3mm
|
|
Material width
|
650mm(MAX)
|
800mm(MAX)
|
800mm(MAX)
|
1250mm(MAX)
|
1600mm(MAX)
|
1800mm(MAX)
|
2000mm(MAX)
|
2200mm(MAX)
|
|
Roll weight
|
8ton(MAX)
|
10ton(MAX)
|
10ton(MAX)
|
20ton(MAX)
|
20ton(MAX)
|
20ton(MAX)
|
20ton(MAX)
|
20ton(MAX)
|
|
Cutting accuracy
|
±0.3mm
|
±0.3mm
|
±0.3mm
|
±0.3mm
|
±0.5mm
|
±0.5mm
|
±0.5mm
|
±0.5mm
|
|
Unit speed
|
80
m/min(MAX) |
80
m/min(MAX) |
80
m/min(MAX) |
60
m/min(MAX) |
60
m/min(MAX) |
60
m/min(MAX) |
60
m/min(MAX) |
60
m/min(MAX) |
|
Model
|
400 Type
|
800 Type
|
800 Type
|
1250 Type
|
1600 Type
|
1800 Type
|
|||||||
|
Original coil material
|
Cold rolled sheet, galvanized sheet, color coated sheet, stainless steel sheet, etc
|
||||||||||||
|
Thickness
|
0.2mm-2.0mm
|
0.2mm-2.3mm
|
0.5mm-3mm
|
0.3mm-2.3mm
|
0.5mm-3mm
|
0.5mm-3mm
|
|||||||
|
Material width
|
400mm(MAX)
|
800mm(MAX)
|
800mm(MAX)
|
1250mm(MAX)
|
1600mm(MAX)
|
1800mm(MAX)
|
|||||||
|
Roll weight
|
5ton(MAX)
|
10ton(MAX)
|
10ton(MAX)
|
20ton(MAX)
|
20ton(MAX)
|
20ton(MAX)
|
|||||||
|
Cutting accuracy
|
Shear ± 0.3mm acceleration and deceleration ± 0.4mm
|
||||||||||||
|
Shear rate
|
200cuts/min
|
160cuts/min
|
120cuts/min
|
120cuts/min
|
|||||||||
|
Unit speed
|
70m/min-90m/min
|
80m/min
|
|||||||||||
