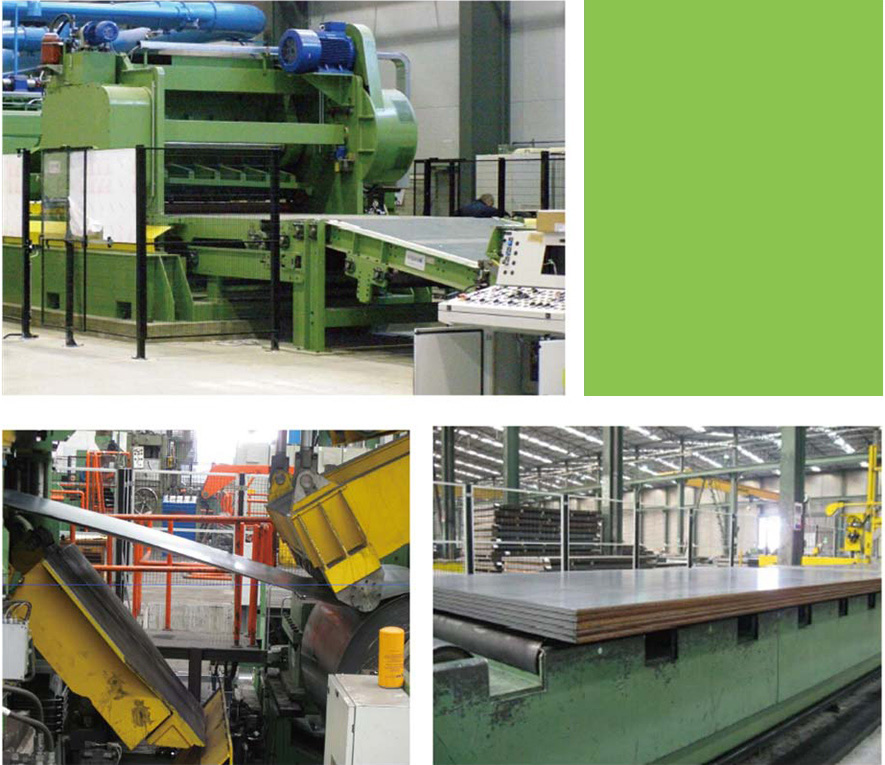

Performance characteristics:◆The hot rolling crosscutting line adopts highly reliable mechanical properties to realize high-quality flattening of the sheetmetal, the high- precision import processing center ensures complete elimination of stress of the sheet metal, the import sizing system ensures accurate length determination, and the friendly man-machine interface ensures convenient crosscutting line operation.The main functions of the crosscutting line are un coiling, straightening, trimming and crosscutting the steel strip to a specified length of steel plate.The sheared steel plate passes through a steel plate straightener, is marked, and then enters a stacker.
|
Model
|
1600Type
|
1800Type
|
2000Type
|
2200Type
|
||||||
|
Processing material
|
Hot-rolled steel coil,Hot-acid-cleaning steel coil,Stainless steel coil,etc.
|
|||||||||
|
Processing sheet thickness
|
1.2mm-6.0mm
|
3mm-12mm
|
5mm-20mm
|
8mm-25mm
|
||||||
|
Processing sheet width
|
1600mm(MAX)
|
1800mm(MAX)
|
2000mm(MAX)
|
2200mm(MAX)
|
||||||
|
Coil weight permitted
|
30ton(MAX)
|
30ton(MAX)
|
30ton(MAX)
|
30ton(MAX)
|
||||||
|
Cutting accuracy
|
±0.8mm
|
±1.5mm
|
±1.8mm
|
±2.0mm
|
||||||
|
Line speed
|
60m/min(MAX)
|
40m/min(MAX)
|
25m/min(MAX)
|
25m/min(MAX)
|
||||||
